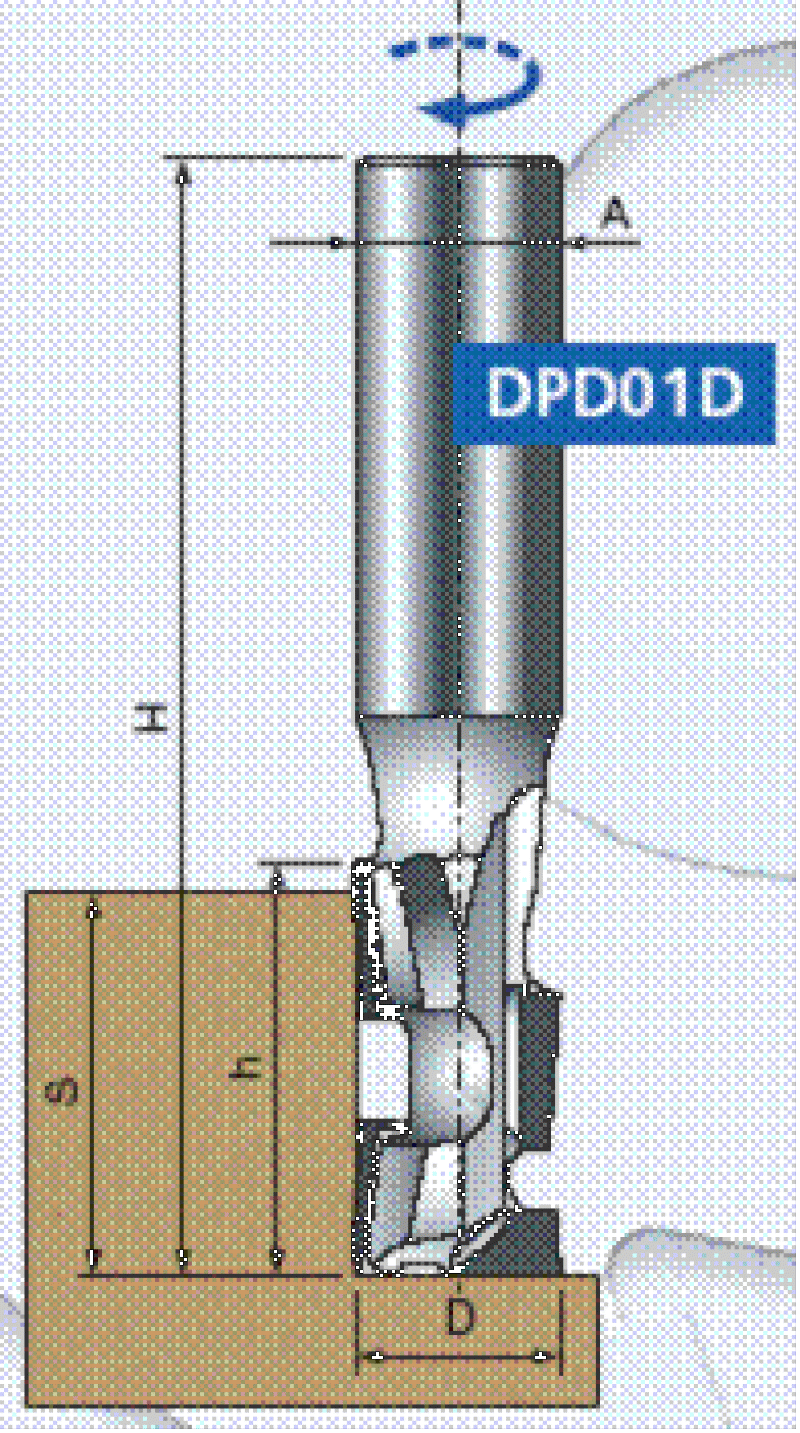

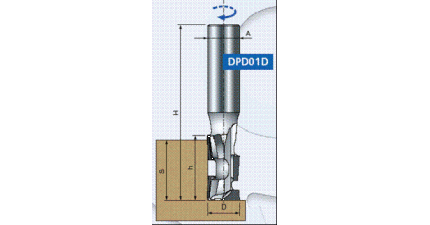

Фреза | D, mm | h, mm | S, mm | H, mm | A, mm | Z | Кол-во зубьев |
DPD01DNGD5 | 12 | 25 | 18 | 83,5 | 12х50 | 2 | 3 |
DPD01DRGD5 | 12 | 25 | 18 | 83,5 | 20x50 | 2 | 3 |
DPD01DNGF5 | 12 | 36 | 31 | 96 | 12x35 | 2 | 4+1 HM |
DPD01DMJD5 | 12,7 | 25 | 18 | 83,5 | 12.7x50 | 2 | 3 |
DPD01DMJF5 | 12,7 | 36 | 31 | 96 | 12,7x35 | 2 | 4+1 HM |
DPD01DRHD5 | 14 | 27,5 | 22 | 87,5 | 20x50 | 2 | 3+1 HM |
DPD01DPLD5 | 16 | 27,5 | 22 | 87,5 | 16x50 | 2 | 3+1 HM |
DPD01DPLF5 | 16 | 36 | 31 | 96 | 16x50 | 2 | 4+1 HM |
DPD01DRLD5 | 16 | 27,5 | 22 | 87,5 | 20x50 | 2 | 3+1 |
DPD01DRLF5 | 16 | 36 | 31 | 96 | 20x50 | 2 | 4+1 |
DPD01DPND5 | 18 | 27,5 | 22 | 87,5 | 16x50 | 2 | 3+1 HM |
DPD01DPNF5 | 18 | 36 | 31 | 96 | 16x50 | 2 | 4+1 HM |
DPD01DPNH5 | 18 | 44,5 | 40 | 104,5 | 16x50 | 2 | 5+1 HM |
DPD01DRND5 | 18 | 27,5 | 22 | 87,5 | 20x50 | 2 | 3+1 |
DPD01DRNF5 | 18 | 36 | 31 | 96 | 20x50 | 2 | 4+1 HM |
DPD01DRNH5 | 18 | 44,5 | 40 | 104,5 | 20x50 | 2 | 5+1 HM |
DPD01DSND5 | 18 | 27,5 | 22 | 87,5 | 25x55 | 2 | 3+1 HM |
DPD01DROD5 | 20 | 27,5 | 22 | 87,5 | 20x50 | 2 | 3+1 HM |
DPD01DROF5 | 20 | 36 | 31 | 96 | 20x50 | 2 | 4+1 HM |
DPD01DROH5 | 20 | 44,5 | 40 | 104,5 | 20x50 | 2 | 5+1 HM |
DPD01DROI5 | 20 | 53 | 49 | 113 | 20x50 | 2 | 6+1 HM |
